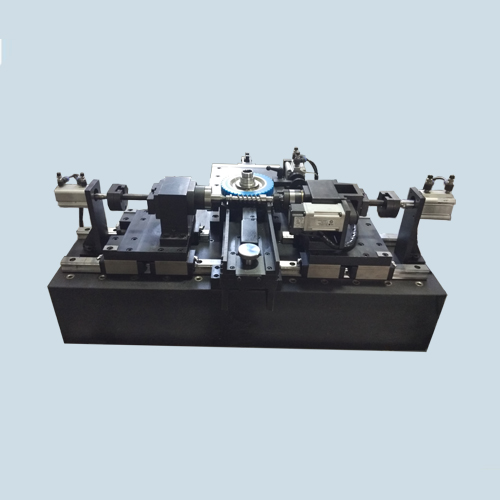

ZSW12 INTELLIGENT DOUBLE-FLANK WORM WHEEL & WORM ROLL TESTER

ZSW12 intelligent double-flank worm wheel and worm roll tester adopts the computerized numerical control (CNC) technology and is capable of automatic acquisitions and intelligent processing of measuring data. It automatically measures the average center distance, maximum center distance and minimum center distance, as well as the tooth-to-tooth radial composite deviation fi", total radial composite deviation Fi" , eccentricity value and dents. Additionally, it can quickly obtain the location and magnitude of burrs, enabling online deburring processes.

View on map

Product Introduction

组 6 (1)(1).png

1. Total radial composite deviation: (Fi")

2. Tooth-to-tooth radial composite deviation: (fi")

3. Eccentricity value (distance between actual worm wheel center and worm wheel clamping center)

4. Dent (burrs in center distance)

5. Center distance (maximum, minimum, average)

组 8(1).png

Specifications/Model	ZSW12
Module of worm wheel	0.5～6 mm
Max. outer diameter of worm wheel	120 mm
Distance between meshing worm wheel and worm centers	35～70 mm
Max. outer diameter of master worm	30 mm
Max. shaft length of master worm	150 mm

※：Technical parameters can be customized to your requirements

组 10 (2)(1).png

1. The natural granite base is robust and reliable. The centralized layout enables easy workpiece loading and unloading;

2. Air-cylinder-controlled worm clamping offers high automation level;

3. Air-cylinder-controlled worm wheel feeding offers high automation level;

4. All movements except for the motor-driven worm are air-cylinder-controlled, offering high automation level, high stability and low failure rate;

5. Measuring results - qualified, repairable and waste, are indicated with colored industrial lights;

6. QR-Code scanning extension is available;

7. SPC analysis of measuring results is available;

组 12 (3)(1).png

1. Evaluation according to GB standards or customized tolerances;

2. Measurement speed and direction of rotation can be set;

3. Find burrs quickly;

4. Measurement results can be saved as PDF, CSV, or printed as a report;

5. Grouping according to center distance;

6. Debugging interface for maintenance;

7. QR code scanning and database function for results traceability;

8. Measurement results displayed in rectangular coordinate system or polar coordinate system.
